600V DC Surge Protector

CNKA is a professional manufacturer of 600V DC surge protectors located in Yueqing City, China. With over 10 years of experience in the electrical industry, we produce solar DC modules that meet the latest DC standards. We guarantee to provide you with excellent service and perfect product quality. We look forward to establishing a good long-term cooperative relationship with you and your company.

CNKA 600v dc surge protector Introduction



China manufacturers CNKA offer wholesale 600V DC surge protectors made in China. These parallel surge protectors (SPD) can effectively protect systems and equipment from permanent damage or instantaneous interruptions caused by overvoltage, overcurrent, lightning, transient surge voltages, industrial noise, and other related factors.



CNKA 600v dc surge protector Parameter (Specification)



Product Model

ESP-D40

Pole

2P

3P

Rated Frequency

One port

SPD Category

Combined type

Test Category

Class ll test

Colour

Green

Maximum Continuous
Operating Voltage Uc

600VDC
1000VDC

1000VDC
1500VDC

Voltage Protection
Level Up(8/20μs)

≤2.8kV

≤3.5kV

Nominal Discharge
Current In(8/20μs)

20kA

20kA

Maximum Discharge
Current Imax(8/20μs)

40kA

40kA

Response Time tA

≤25ns

Size

36x90x66                   54x90x66

Failure Indication

Green:Normal Red:Failure

Sectional Area Of Wires

6~25mm

Installation Method

35mm standard rail

Working Environment
Temperature

-40℃~+85℃

Sheathing Material

Plastic

Protection Level

IP20

Executive Standard

IEC 61643-31





CNKA 600v dc surge protector Feature



1.  Adopts a modular design, making it easy to install and replace.

2.  Equipped with specific thermal isolation switches and fault indicators (optional visual indicators). Green indicates normal operation, while red indicates the need for replacement.

3.  No leakage, no working current.

4.  We are the first factory to produce 1500V SPDs that meet the EN50539-11 standard and have obtained a TUV certificate.

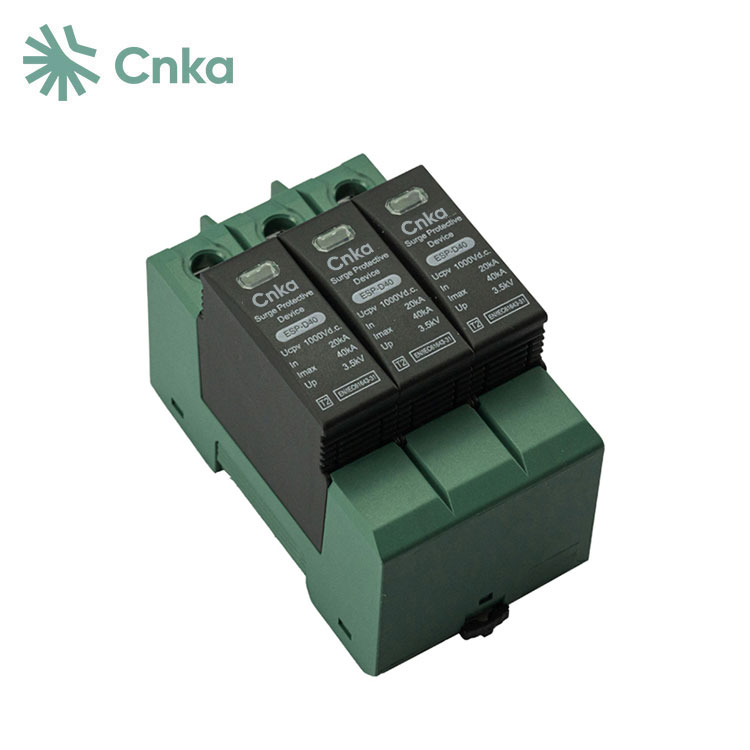

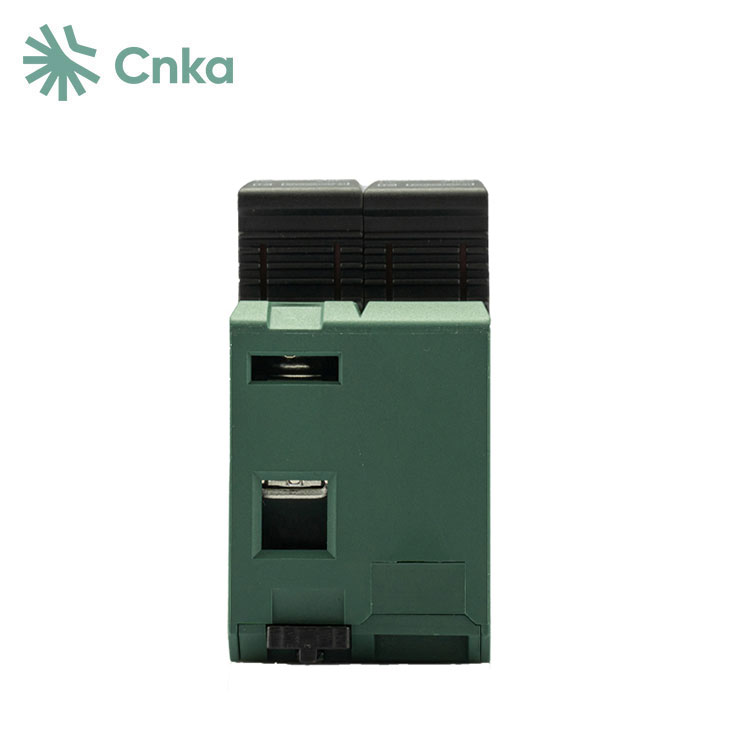

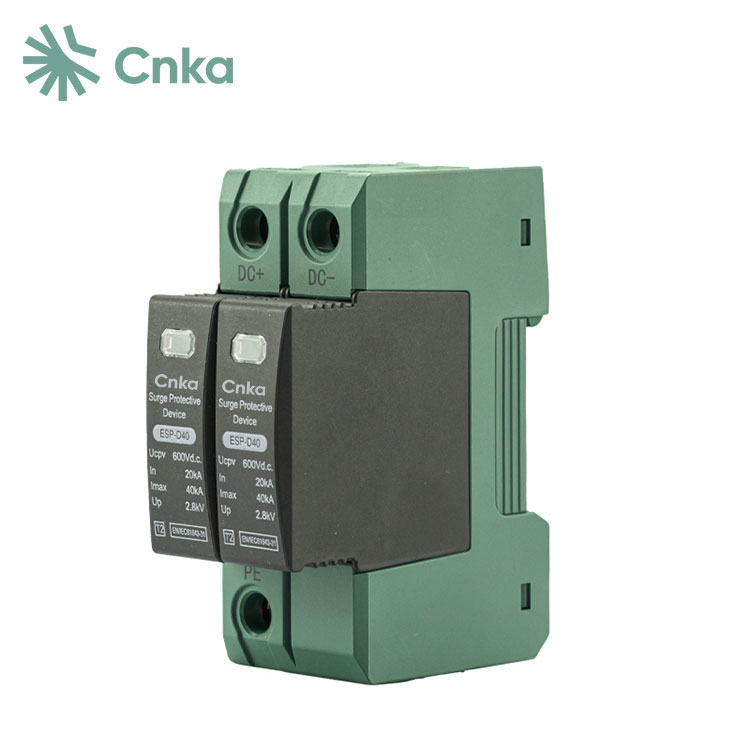

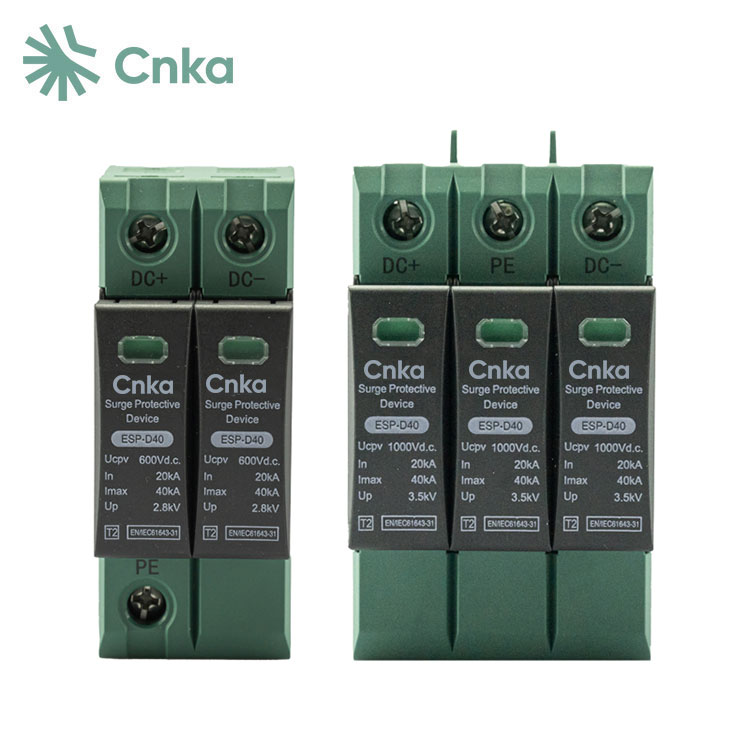

CNKA 600v dc surge protector Details







CNKA 600v dc surge protector Dimensions and wiring







CNKA 600v dc surge protector Applicable scope



This product is suitable for various DC power supply systems, including DC distribution panels, DC power supply equipment, DC distribution boxes, electronic information system cabinets, and output terminals of secondary power supply equipment.
