Differences Between DC and AC Circuit Breakers
Circuit breakers designed for direct current (DC) and alternating current (AC) systems differ significantly due to the unique electrical behaviors of each current type. Below is a detailed comparison:
1. Current Behavior & Arc Extinction Challenges
AC Current Characteristics:
Alternates direction periodically (50Hz or 60Hz).
Naturally crosses zero 100-120 times per second, making arc interruption easier.
Standard breakers rely on this zero-crossing to quench the arc efficiently.
DC Current Characteristics:Flows in one direction continuously without zero-crossings.
Arcing is more persistent and harder to extinguish, requiring stronger suppression mechanisms.
Specialized designs (e.g., magnetic blowouts, arc chutes, or forced air) are needed to break the current.
2. Voltage & Current Ratings
AC Breakers:
Typically rated for RMS voltage (e.g., 120V, 240V, 480V).
Common in household, commercial, and industrial power distribution.
Breaking capacity usually ranges from a few amps to several hundred amps.
DC Breakers:
Rated for constant DC voltage (e.g., 12V, 24V, 48V, up to 1000V in some cases).
Used in solar power systems, battery banks, electric vehicles, and telecom.
Often require higher interrupting capacity (kA range) due to sustained arcing.
3. Internal Design & Construction
AC Breakers:
Use simpler arc suppression (e.g., air blast, thermal-magnetic trip mechanisms).

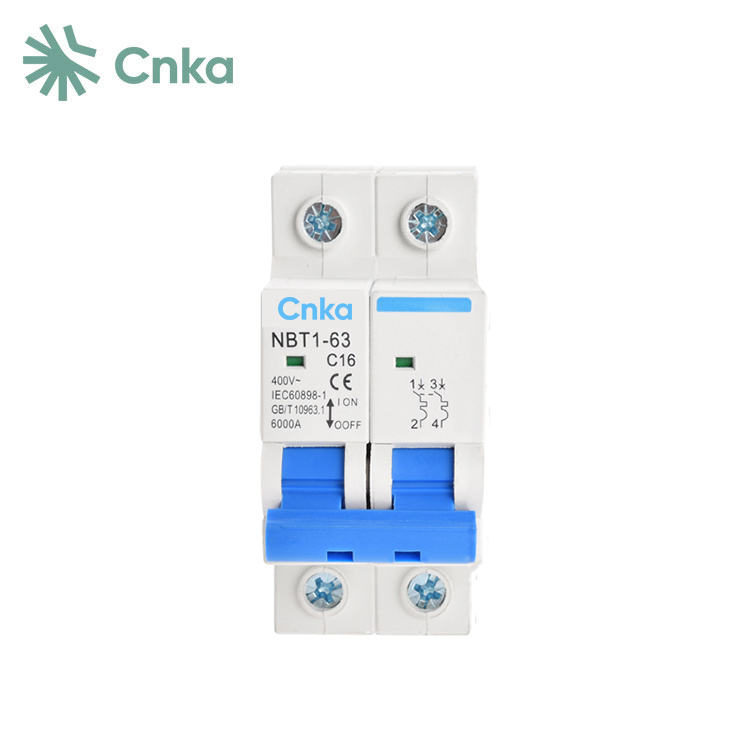

Common types: MCB (Miniature Circuit Breaker), MCCB (Molded Case), ACB (Air Circuit Breaker).
DC Breakers:

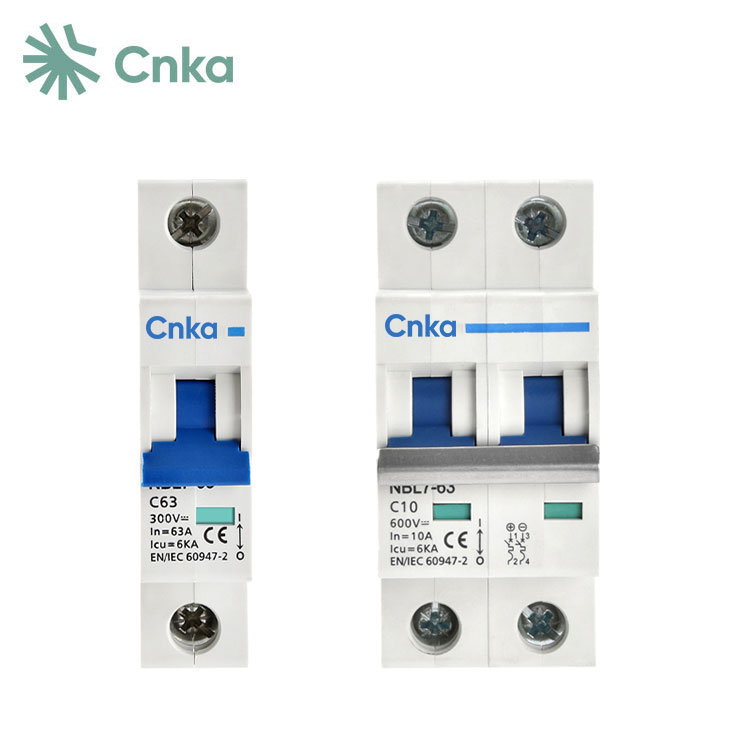

Built with reinforced contacts & advanced arc chutes to handle prolonged arcing.
Some are polarity-sensitive (must be wired correctly).
Bidirectional DC breakers are used in systems like solar panels where current can reverse.
4. Applications & Safety Considerations
AC Breakers:
Found in home wiring, industrial machines, and power grids.
Not suitable for DC circuits—using them can cause failure to trip or dangerous arcing.
DC Breakers:
Essential for renewable energy systems, EV charging, and DC microgrids.
Some hybrid breakers work for both AC/DC, but most are application-specific.
Can They Be Swapped?
Never use an AC breaker for DC unless explicitly rated for both.
DC breakers may work for AC but are not optimized for it.
Conclusion
The core differences stem from arc extinction methods, voltage/current handling, and construction. DC breakers are built tougher to manage continuous current, while AC breakers leverage zero-crossing for easier interruption. Always choose the correct type for safety and reliability.
Would you like recommendations for a specific use case?
