A well-designed solar power system can deliver reliable performance for up to 20 years when using quality components, proper installation methods, and regular maintenance. However, electrical system vulnerabilities including short circuits, excessive heat buildup, and potential fire incidents may compromise system integrity. Solar combiner boxes address these challenges by efficiently managing electrical current flow while enhancing overall system safety.

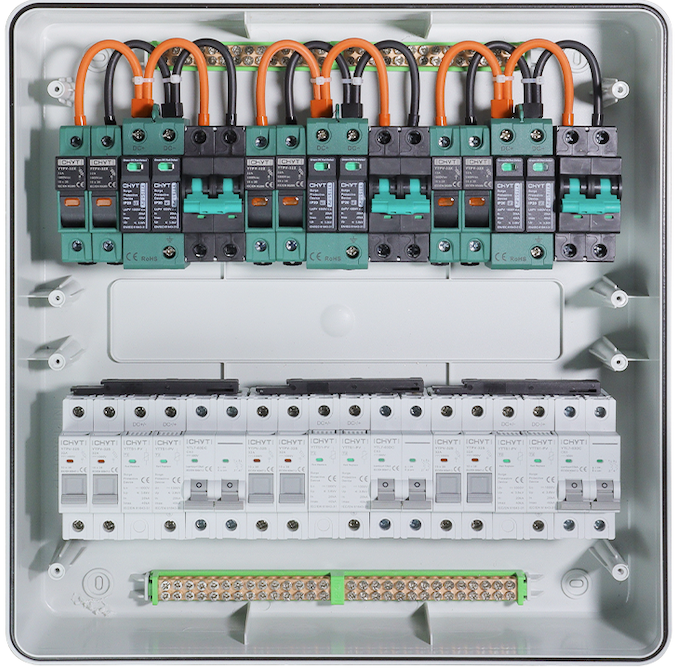

These intelligent devices serve as centralized hubs that collect and direct power from multiple solar arrays. Equipped with protective elements such as circuit breakers, surge suppression devices, and optional monitoring capabilities, combiner boxes deliver comprehensive system protection while maintaining organized cabling and consistent performance.
Key Advantages of Solar Combiner Boxes
1.Streamlined Power Management for Enhanced Efficiency
Current aggregation: Merges outputs from several solar strings into consolidated circuits, decreasing cable requirements and reducing resistive power losses (typically achieving 5-10% efficiency gains).
Simplified system design: Eliminates the necessity for individual string connections to inverters, dramatically reducing installation complexity and component count.
2.Comprehensive Safety Protections
Overcurrent safeguards: Integrated DC protection devices immediately isolate faulty strings during short-circuit or overload conditions, preventing hazardous situations.
Surge mitigation: Built-in surge protective devices (SPDs) provide robust defense against lightning strikes and voltage irregularities, protecting sensitive equipment.
Environmental durability: IP65-rated enclosures guarantee reliable operation in demanding conditions, from arid deserts to corrosive coastal environments.
3.Optimized Maintenance Procedures
Centralized diagnostics: Troubleshooting becomes more efficient by concentrating inspection points within the combiner enclosure, eliminating time-consuming individual circuit checks.
Wiring Simplification Through Combiner Box Technology
1.Intelligent String Integration
Modern combiner solutions employ flexible "n-input to y-output" configurations (such as 6-to-2 designs) to efficiently consolidate multiple DC inputs.
2.Cable Optimization
Strategic placement near solar arrays minimizes cable runs, reducing both material costs and potential voltage drops.
3.Standardized Connection Systems
Engineered connection systems feature:
-Pre-configured plug-and-play interfaces that eliminate wiring errors
-High-conductivity copper bus bars that minimize connection points
-Color-coded terminals for foolproof installation
4.Voltage Flexibility
Advanced models support:
-Mixed voltage operation through isolated circuit designs
-Voltage matching capabilities that reduce inverter requirements
Final Considerations
PV combiner boxes represent a critical component for ensuring long-term system safety and performance. Optimal selection requires careful evaluation of array size, operating environment, and desired monitoring capabilities to guarantee decades of trouble-free service. When properly specified, these devices deliver substantial returns through improved efficiency, reduced maintenance, and enhanced system longevity.
-
