A PV Combiner Box is a pivotal component in solar photovoltaic systems, centralizing multiple strings of solar panels into a single output to simplify system management and enhance operational safety. This article delves into the technical structure, key parameters, installation guidelines, and practical applications of PV Combiner Boxes. It aims to provide a clear understanding for engineers, system designers, and project managers to optimize solar energy systems effectively while minimizing risks and maintenance efforts.

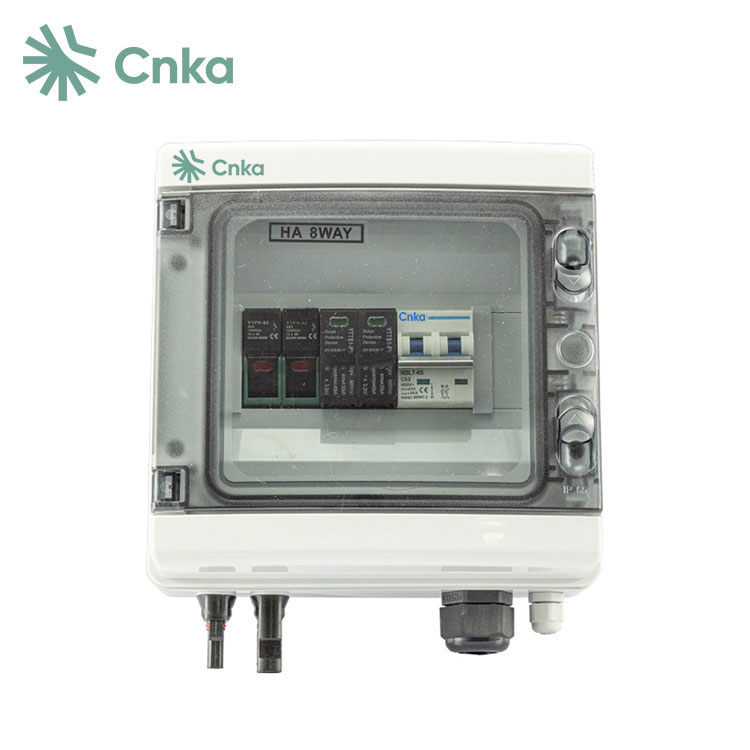

A PV Combiner Box acts as a centralized hub in photovoltaic systems, combining multiple solar panel strings into one output for connection to the inverter. By integrating fuses, surge protection devices, and monitoring capabilities, it ensures operational safety, reduces wiring complexity, and enables efficient troubleshooting. It plays a critical role in both commercial and utility-scale solar projects, balancing system performance, and protection against electrical faults.
Modern PV Combiner Boxes are designed for durability, with IP-rated enclosures protecting internal components from environmental hazards such as dust, moisture, and UV exposure. They are compatible with diverse string configurations and support scalable solar installations.
A typical PV Combiner Box includes the following key components, each serving a specific function to maintain electrical integrity and system reliability:
The structural layout is engineered to facilitate heat dissipation, minimize electrical losses, and ensure ease of maintenance. Proper spacing between components prevents overheating and allows for safe replacement of fuses or surge devices without disrupting system operation.
Understanding the technical parameters of a PV Combiner Box is essential for system design and safety compliance. The following table summarizes typical specifications:
| Parameter | Specification Range |
|---|---|
| Number of Strings | 4–24 |
| Maximum Input Voltage | 1000V–1500V DC |
| Rated Current | 10A–63A per string |
| Surge Protection | 20kA–40kA |
| Enclosure Rating | IP65–IP66 |
| Operating Temperature | -25°C to +60°C |
| Material | Powder-coated Aluminum / Stainless Steel |
These parameters ensure reliable operation in diverse climates and allow safe integration into commercial and utility-scale solar systems.
PV Combiner Boxes are widely used in various solar installations, each with specific integration considerations:
Their modular design and flexible input configuration make them adaptable to different system topologies, reducing overall wiring and simplifying monitoring and fault detection.
Proper installation of a PV Combiner Box is crucial for system safety and performance. Key considerations include:
Following these best practices ensures long-term reliability, reduces downtime, and enhances safety in high-power solar systems.
Q: How many strings can a PV Combiner Box typically support?
A: Standard PV Combiner Boxes support between 4 and 24 strings, depending on model specifications. Higher string numbers are available for utility-scale projects with larger arrays.
Q: What protections are integrated into a PV Combiner Box?
A: PV Combiner Boxes incorporate string-level fuses or breakers, surge protection devices, and grounding interfaces to safeguard against overcurrent, voltage spikes, and potential electrical faults.
Q: Can PV Combiner Boxes be installed outdoors?
A: Yes. Most models are enclosed in IP65–IP66-rated enclosures, providing dust and water protection suitable for outdoor environments and extreme weather conditions.
PV Combiner Boxes are essential for efficient and safe solar energy system operation, centralizing multiple strings and providing critical protection and monitoring capabilities. Proper design, installation, and parameter selection ensure long-term reliability and optimized energy output.
CNKA offers a wide range of PV Combiner Boxes designed for commercial and utility-scale solar projects, combining durable materials, flexible configurations, and integrated safety features. For more information or to discuss system requirements, contact us to receive personalized guidance and support for your solar installations.
