Do I Really Need a DC SPD on my rooftop PV and battery setup?

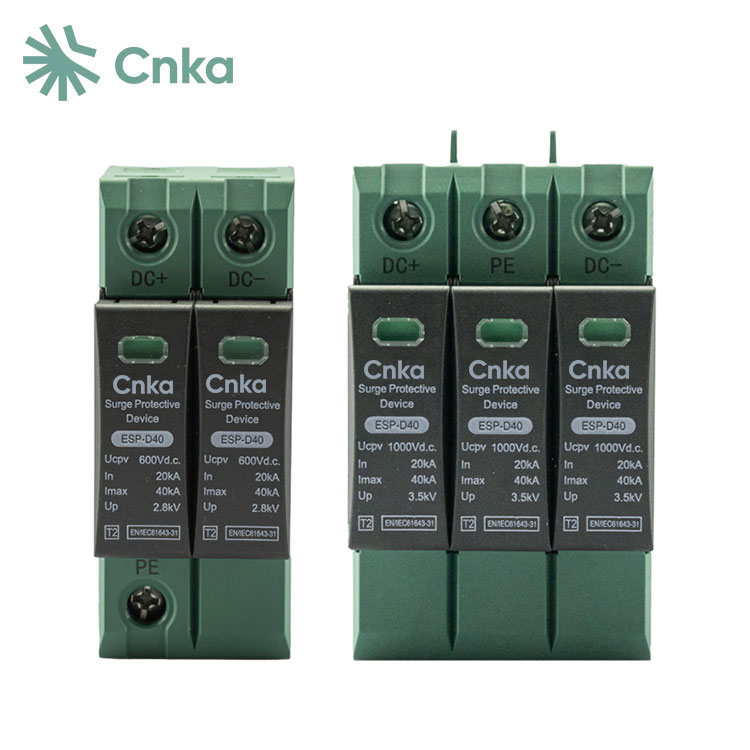

I live in a small townhouse where the PV combiner shares a cramped cabinet with the DC disconnect and a chatty Wi-Fi logger. After one loud summer shower, the inverter tossed a surge fault and my weekend plans were suddenly cables and zip ties. The fix turned out simple: a compact, rail-mounted DC SPD right at the string landing with short leads and a clean bond. On a few follow-up jobs I kept reaching for the same kit because it actually fit and held up on hot rooftops; that is how CNKA slid into my life—quietly, by working in tight spaces. This is the practical rundown I wish I had on day one: what a DC SPD really solves, where it belongs, and how to size it.

What problems does a DC SPD actually fix in day-to-day use?

• It diverts fast transients on the DC side before those spikes stress the inverter DC input, MPPT boards, BMS, or EV charger modules.
• It reduces nuisance inverter faults after nearby lightning, grid switching, or inductive loads cycle on a shared service.
• It protects long PV string runs where induced surges build along cable length and jump at terminations.
• It extends equipment life so I replace fewer boards and spend less time scheduling return visits.

Where should a DC SPD sit in my system?

• At the rooftop combiner or junction where strings come together for the first time.
• At the DC disconnect or inverter DC input to clamp what makes it past the roof.
• On the battery side near the DC bus or BMS if I run long battery cables or share conduits.
• Inside DC fast charger cabinets and telecom DC power shelves that sit in harsh weather.

How do I choose ratings without overpaying?

I match the SPD’s continuous operating voltage to my array or bus voltage with comfortable headroom, then I check the discharge current and let the site’s exposure drive the choice between Type 2 or Type 1+2. Replaceable modules and remote alarm contacts save me time later. Here is the quick map I use when I spec jobs:

Why does the enclosure and footprint matter when space is tight?

My cabinets are usually crowded with disconnects, meters, and comms gear, so I favor SPDs with a slim body that snap onto DIN rail without fighting adjacent wiring. A compact SPD leaves airflow around hot components, and a weather-sealed housing keeps out dust and rain on exposed rooftops. In other words, I get solid protection without sacrificing layout.

How do I install it smoothly and keep inspectors happy?

1. I keep leads short and straight, using the same cross-section as the feeder where practical to reduce let-through voltage.
2. I bond the SPD’s earth directly to the main DC bonding point, not through a daisy chain of terminals.
3. I place it on the line side of the DC disconnect when I need clamping protection before the switch.
4. I label the device, the rating, and the date so the next tech knows what I used.
5. I enable the remote alarm contact if the model provides one and land it on the site monitor.

What mistakes do I see and how do I avoid them?

• Using an SPD below the array’s open-circuit voltage and watching it trip on cold mornings. I size with cold-weather Voc, not just the nameplate.
• Landing long, looping leads that add inductance. I route direct, short, and paired.
• Putting a single SPD at the inverter and forgetting a rooftop combiner exposed to the sky. I protect both ends on long runs.
• Skipping replacement cartridges in coastal sites. I stock spares and schedule quick checks after big storms.

How do I compare options quickly when specs all look the same?

• I check Uc for adequate headroom above Voc and Vmp.
• I match Type 2 for downstream gear and Type 1+2 for service entry or high-exposure rooftops.
• I look for replaceable modules with a clear status window so I can swap them in minutes.
• I prefer compact bodies that leave room for wire management, not just a big block that makes the door hard to close.
• I verify weather resistance for outdoor boxes and UV-stable plastics for rooftop heat.

What is my take on compact models for small cabinets?

I like units that combine a slim footprint with rugged materials, because they slide into tight spaces and keep working through heat, dust, and rain. The better designs let me clip onto DIN rail, land the wires without contortion, and get back online fast after maintenance. That balance of size, durability, and straightforward installation is why these DC protectors fit the kind of jobs I actually see, not just the ones in brochures.

Will a DC SPD be worth it on the next storm?

A compact, weather-tough SPD on the DC side keeps transients from pounding sensitive electronics, and the installation can be quick when the body is designed for tight spaces. I pay once, I sleep better, and I schedule fewer call-backs.

Ready to protect your site with a clean DC plan?

If you want help matching a model to your array, bus, or charger cabinet, send your voltage, location, and enclosure size and I will map a short-lead layout that works. If you are planning a multi-roof or outdoor cabinet project and you need compact gear that installs fast, tell me your constraints and I will share a shortlist that fits. Contact us to request a quote or a quick spec check and leave your inquiry today so we can size the right DC SPD for your site.
