DC Lightning Surge Arrester

CNKA is a specialized manufacturer of DC lightning surge arresters and has become a leading producer in this field through persistent research and development. We offer a variety of product series for our customers to choose from. If you are interested in any of our products, please do not hesitate to contact us via email or phone, and we will be happy to provide you with further information.

CNKA dc lightning surge arrester Introduction

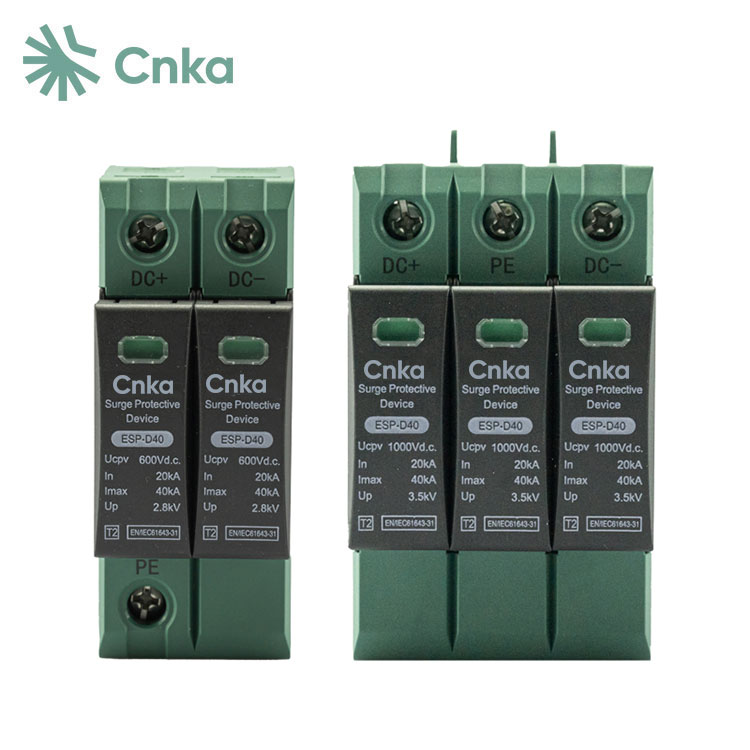

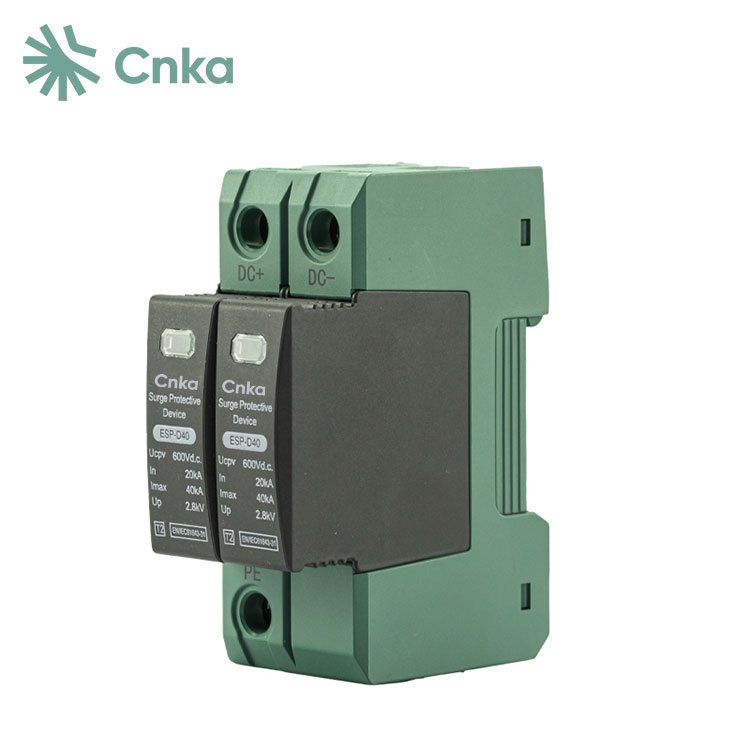

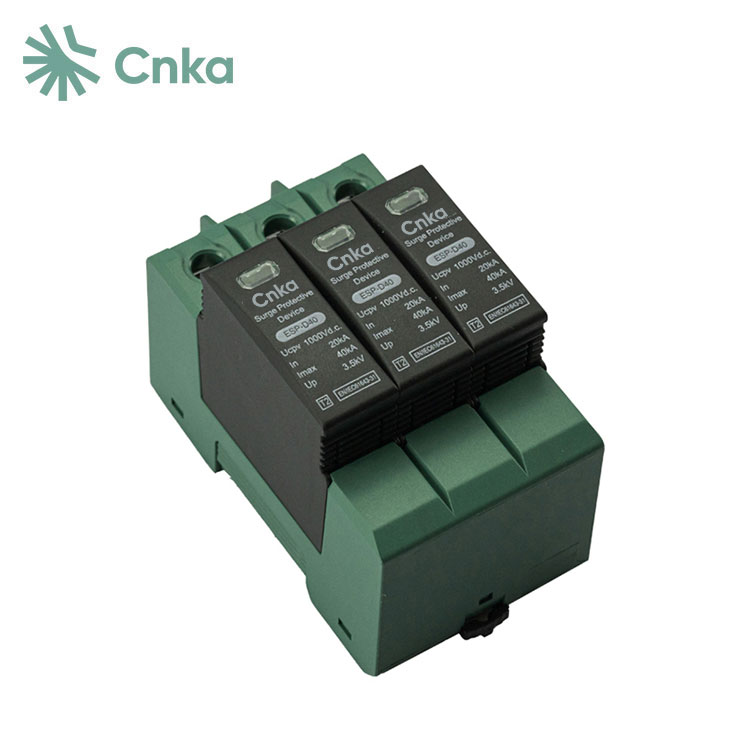

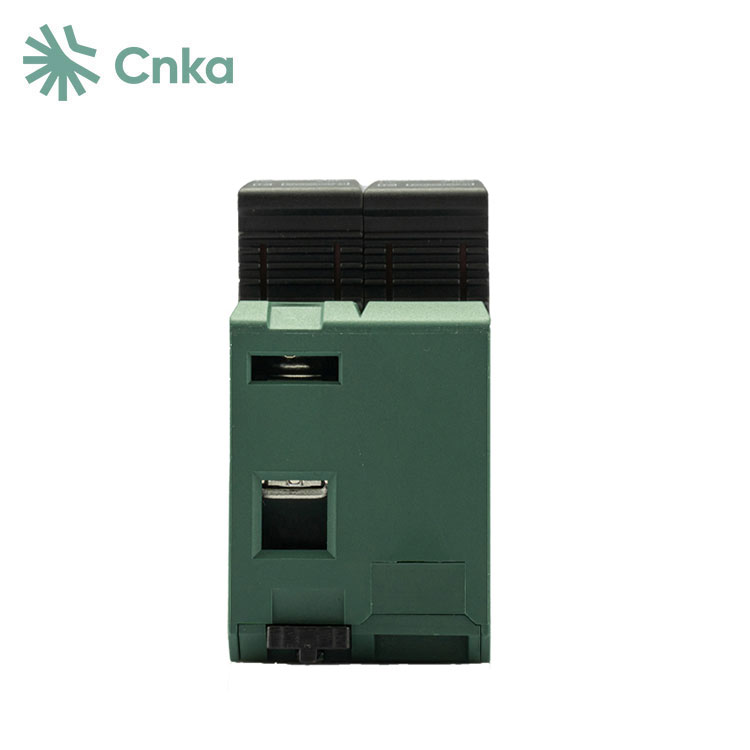

China suppliers CNKA offer affordable DC lightning surge arresters made in China. It is recommended to use DC lightning surge arresters at both ends of the DC power line (solar panel side and inverter/converter side), especially when the line wiring is external and long. The ESP-D40 DC series features a circuit design based on high-energy MOVs, equipped with specific thermal isolation switches and related fault indicators, providing reliable surge protection. This ESP-D40 series also includes a remote signal function, allowing users to monitor device operation in real-time. Additionally, the ESP-D40 DC series employs a plug-in module design, enabling quick and convenient maintenance in the event of a malfunction.



CNKA dc lightning surge arrester Parameter (Specification)



Product Model

ESP-D40

Pole

2P

3P

Rated Frequency

One port

SPD Category

Combined type

Test Category

Class ll test

Colour

Green

Maximum Continuous
Operating Voltage Uc

600VDC
1000VDC

1000VDC
1500VDC

Voltage Protection
Level Up(8/20μs)

≤2.8kV

≤3.5kV

Nominal Discharge
Current In(8/20μs)

20kA

20kA

Maximum Discharge
Current Imax(8/20μs)

40kA

40kA

Response Time tA

≤25ns

Size

36x90x66                   54x90x66

Failure Indication

Green:Normal Red:Failure

Sectional Area Of Wires

6~25mm

Installation Method

35mm standard rail

Working Environment
Temperature

-40℃~+85℃

Sheathing Material

Plastic

Protection Level

IP20

Executive Standard

IEC 61643-31





CNKA dc lightning surge arrester Feature



1  Provides a remote signal function (select as needed).

2  PPT material cover with flame retardant properties.

3  Equipped with temperature-controlled circuit breakers and built-in overcurrent fuses for comprehensive fire prevention.

4  Suitable for power lightning protection of distribution boxes, floor distribution boxes, distribution rooms, distribution cabinets, computer rooms, and information system computer rooms.



CNKA dc lightning surge arrester Details







CNKA dc lightning surge arrester Dimensions and wiring







CNKA dc lightning surge arrester FAQ



Q: How does a solar surge protector work?

A: A surge protector serves as a safeguard against electronics damage by redirecting excess electricity from the "hot" power line into a grounding wire. This is accomplished using a metal oxide varistor (MOV) in most standard surge protectors, which consists of a metal oxide linked to the power and grounding lines through two semiconductors.

Q: What are surge protection devices for PV?

A: In order to ensure the safety and protection of both household and large-scale PV installations, it is important to adhere to specific design protocols. Key measures such as the installation of lightning arresters and surge protection devices (SPDs) should be implemented to proactively safeguard the system and prepare for potential power surges.
