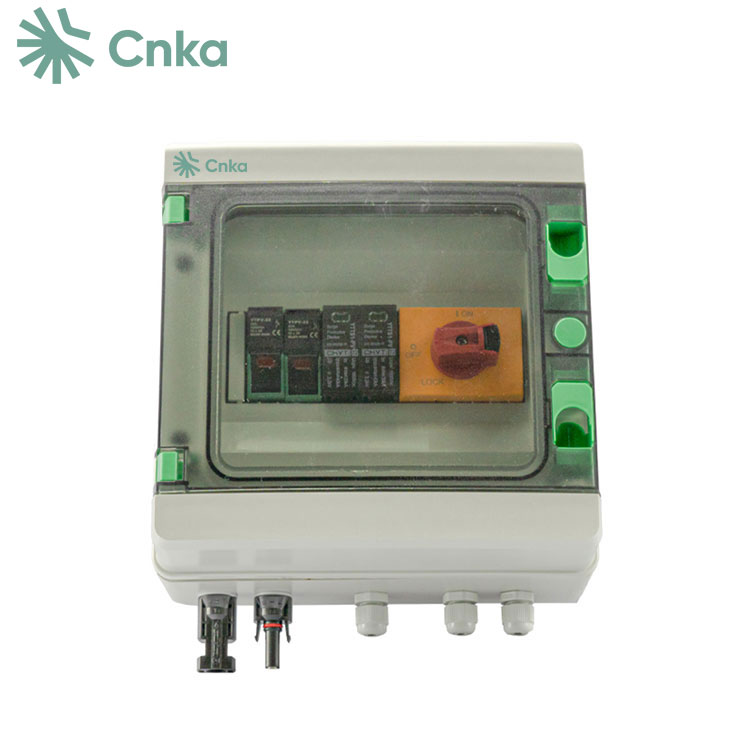

  • Solar Pv Combiner BoxSolar Pv Combiner Box

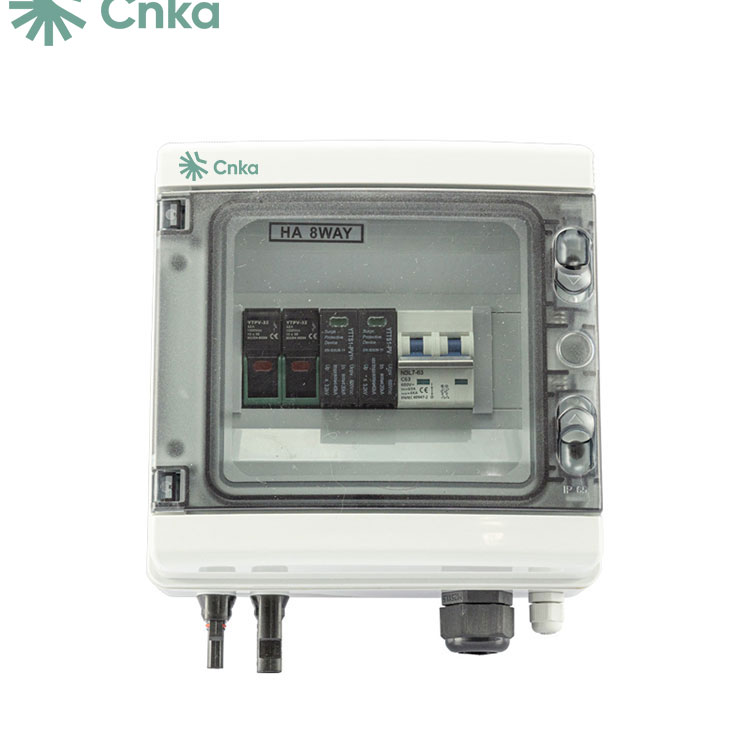

  • Solar Pv Combiner BoxSolar Pv Combiner Box

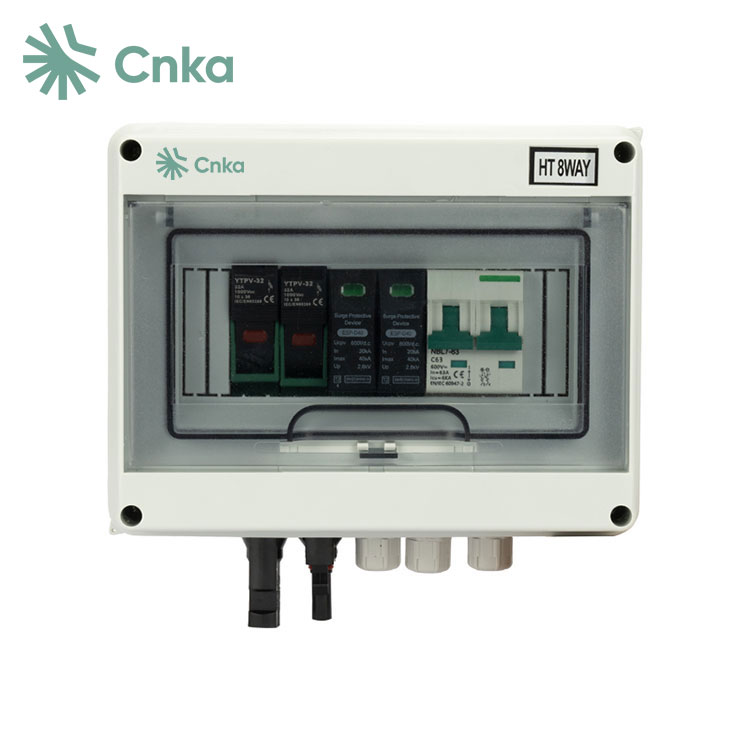

  • Solar Pv Combiner BoxSolar Pv Combiner Box

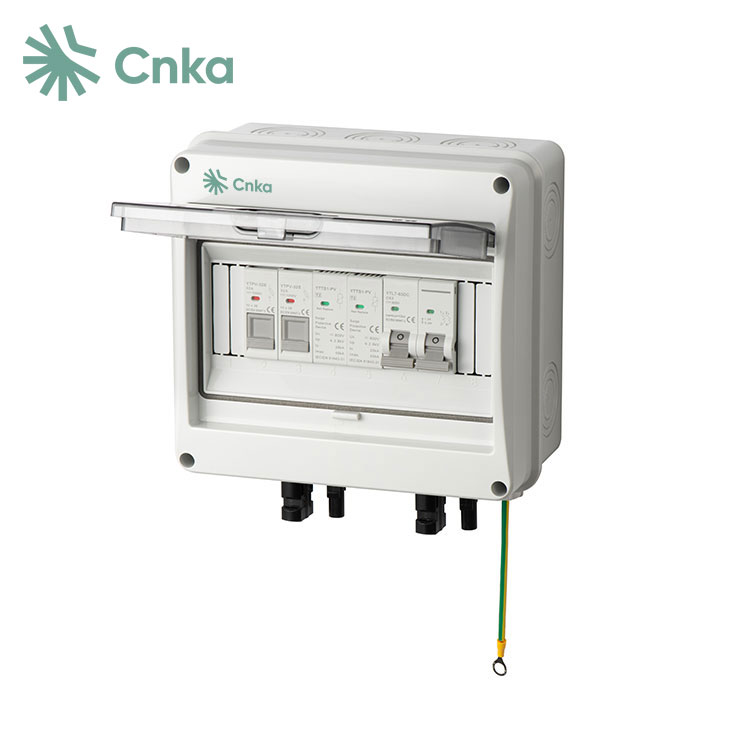

  • Solar Pv Combiner BoxSolar Pv Combiner Box

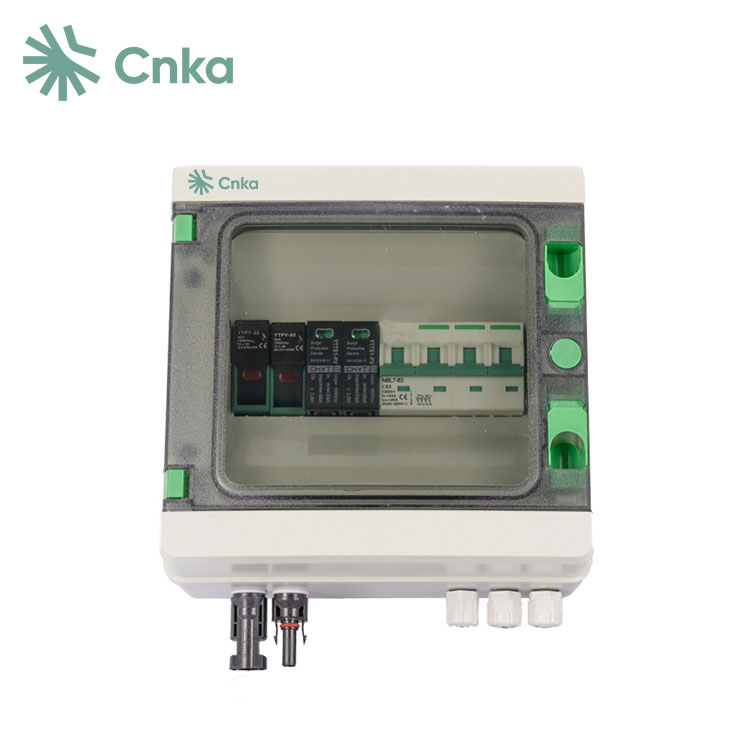

  • Solar Pv Combiner BoxSolar Pv Combiner Box

Solar Pv Combiner Box

As a leading supplier in China's low-voltage electrical field, CNKA is dedicated to delivering efficient, safe, and reliable solar PV combiner box solutions to customers worldwide. Our products are designed to enhance productivity and energy efficiency while minimizing environmental impact. We continually innovate and uphold a professional spirit, collaborating closely with our customers to create a sustainable future.

CNKA  solar pv combiner box Introduction


China Factory CNKA (company brand) provides customized installation of solar equipment, including IP65 grade solar PV combiner boxes. Each solar PV combiner box can connect one set of photovoltaic cells in series and output one set of DC power to the grid side, supporting voltages ranging from DC600V to DC1000V.



CNKA  solar pv combiner box Parameter (Specification)


Solar PV DC1 in 1 out Combiner Box
Rated voltage of photovoltaic system DC 600V&1000V Max input amp for each string 15A
Input strings 1 Number of output strings
Waterproof grade ip65/Lighting protection
Category of test ll grade protection Nominal discharge amp 20KA
Max discharge amp 40KA Volt protection level 3.2KV
SPD Max operation voltage DC 600V&1000V Poles 2P
Structure characteristic Plug push module System
Protection grade lp65 Output switch DC circuit breaker &DC isolation switch
Solar connector Standard Box material PVC
Installation method Wall mounting type Operating temperature -25℃-+60℃
Installation:indoors/outdoors Yes
Mechanical parameter
Widh*high*Depth(mm) 200*155*95■ 215*210*100 ■ 212*207*118


CNKA  solar pv combiner box Feature



1.IP65 Protection: Ensures the combiner box is dust-tight and protected against water jets.

2.Optimized Wiring: Simplifies physical connections between solar panels and inverters.

3.Durability: The HT series combiner box is designed for harsh environments.

4.Safety and Aesthetics: All photovoltaic system products are safe, concise, aesthetically pleasing, and applicable.

5.High-Voltage Fuses: Equipped with high-voltage fuses to prevent photovoltaic input array backlash.

6.Versatility: Suitable for both photovoltaic grid-connected inverters and off-grid inverters.


CNKA  solar pv combiner box Details







CNKA  solar pv combiner box Dimensions and wiring




CNKA  solar pv combiner box FAQ



Q: How can I become your agent in my country?

A: To inquire about becoming our representative in your country, please contact us via email.

Q: How far is your factory from the airport?

A: It takes approximately one hour to reach our factory from the nearest airport. If you plan to visit, I can arrange transportation.

Q: Do you provide free spare parts?

A: We can provide sample spare parts if they are available, with shipping costs to be borne by the customer.
