Solar Surge Protection

You can confidently purchase customized solar surge protection from us. We eagerly anticipate working with you. If you wish to learn more, please consult us now, and we will promptly respond to you! China CNKA has successfully developed and produced a variety of industrial electrical products, including circuit breakers (MCB, RCBO, RCCB, ELCB, etc.), fuses, control units, distribution boxes, and AC contactors.

CNKA solar surge protection Introduction


China suppliers CNKA's latest solar surge protection can prevent lightning surge voltage in photovoltaic power supply systems. It requires parallel installation on the DC network to be protected, offering both common and differential mode protection. It is recommended to install surge protection devices at both ends of the DC power line, specifically on the solar panel side and the inverter converter side. Especially in scenarios where the wiring is long and the external environment is unstable, it is essential to use high-energy power overvoltage (MOV) with specific thermal isolation switches and related fault indicators.


CNKA solar surge protection Parameter (Specification)


Product Model

ESP-D40

Pole

2P

3P

Rated Frequency

One port

SPD Category

Combined type

Test Category

Class ll test

Colour

Green

Maximum Continuous
Operating Voltage Uc

600VDC
1000VDC

1000VDC
1500VDC

Voltage Protection
Level Up(8/20μs)

≤2.8kV

≤3.5kV

Nominal Discharge
Current In(8/20μs)

20kA

20kA

Maximum Discharge
Current Imax(8/20μs)

40kA

40kA

Response Time tA

≤25ns

Size

36x90x66                   54x90x66

Failure Indication

Green:Normal Red:Failure

Sectional Area Of Wires

6~25mm

Installation Method

35mm standard rail

Working Environment
Temperature

-40℃~+85℃

Sheathing Material

Plastic

Protection Level

IP20

Executive Standard

IEC 61643-31

CNKA solar surge protection Feature


1 Under normal conditions, the indicator window is clearly green; in a fault state, the indicator window will turn noticeably red.

2 Each electrode reaches 1500 volts, 1200 volts, 1000 volts, and 500 volts respectively.

3 It has the function of prompting for operation and module degradation.

4 Fully enclosed terminal blocks.

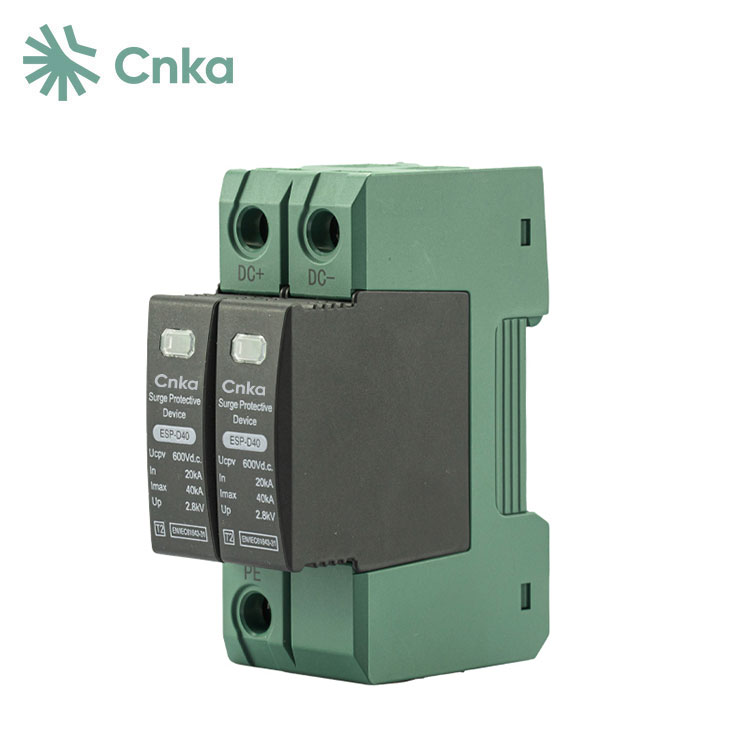

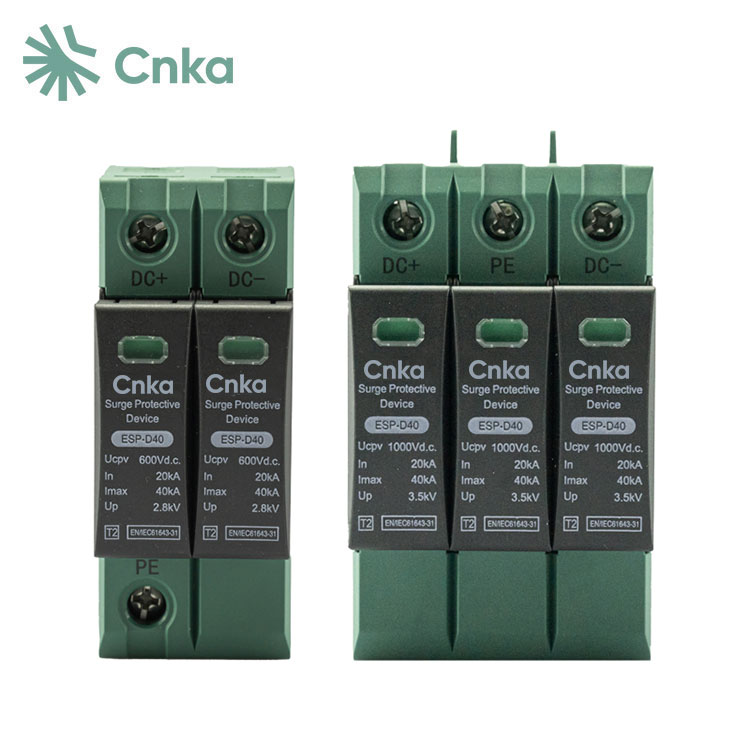

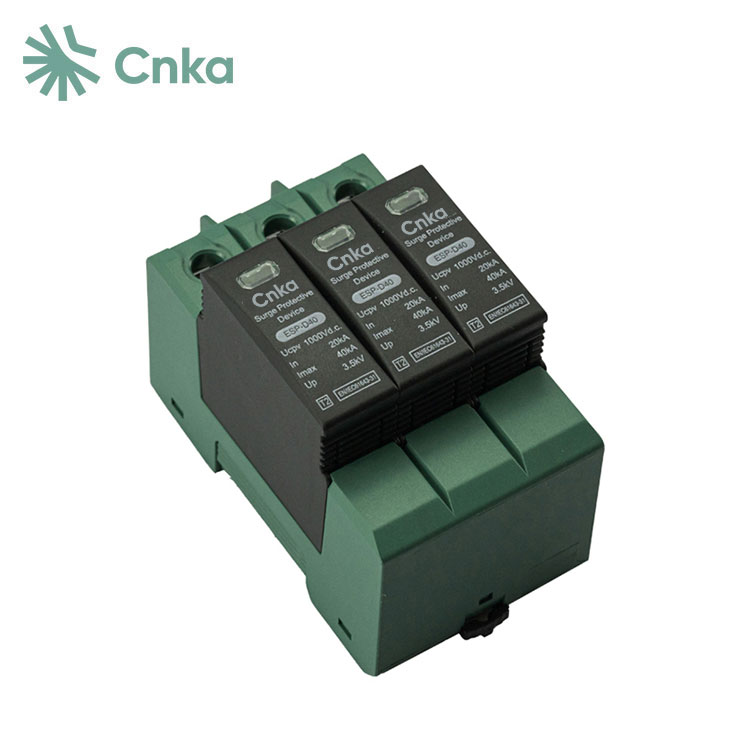

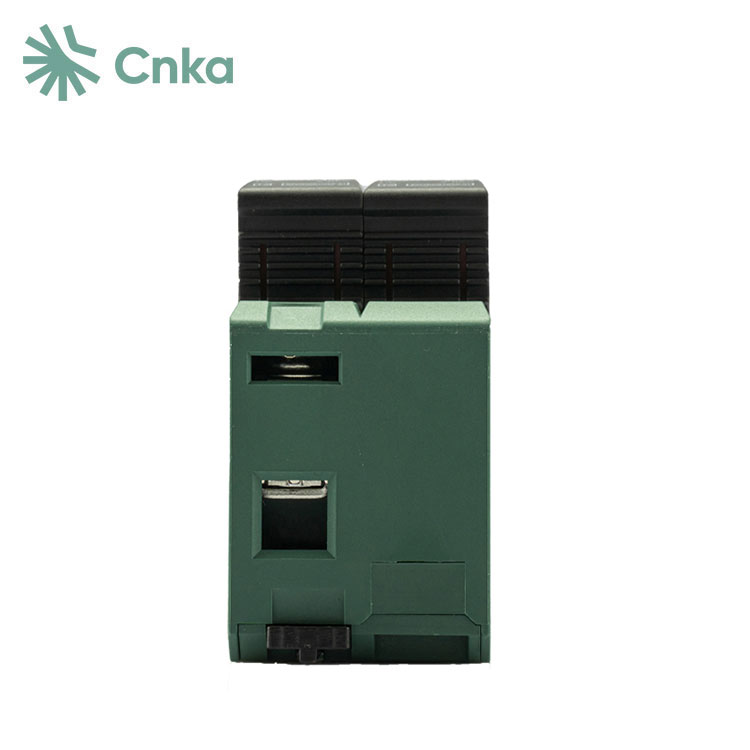

CNKA solar surge protection Details



CNKA solar surge protection Dimensions and wiring



CNKA solar surge protection FAQ


Q: How long is the product guarantee?

A: We provide an 18-month warranty and have a dedicated department responsible for ensuring the quality of our products. Every single product undergoes 100% inspection to ensure its quality.

Q: What is a PV breaker in a solar system?

A: Photovoltaic (PV) systems harness the energy of the sun and convert it into electricity, which is then fed into the electric grid. In the balance of system (BOS), DC circuit breakers safeguard the wiring that links the PV modules to the combiner or inverter, acting as both a protective measure and a means of disconnecting the current flow.

Q: What is a DC circuit breaker?

A: CNKA DC circuit breakers are designed to safeguard DC-powered electrical appliances and incorporate supplementary measures to extinguish arcs. These breakers are a novel technology for most homeowners, as the majority of household devices operate on AC power and require AC circuit breakers.
