Molded Case Circuit Breaker DC Mccb

CNKA, established in 2008, boasts a decade of expertise in manufacturing molded case circuit breakers (Molded Case Circuit Breaker DC Mccb). We are committed to punctual delivery by meticulously managing our production schedules. Before packing, we offer a detailed production report to keep you informed of progress. Furthermore, upon shipment, we promptly notify you and provide photos of your order.

CNKA molded case circuit breaker dc mccb Introduction


China Suppliers CNKA offers bulk molded case circuit breakers (DC MCCBs) that are suitable for DC power grid circuits, with a rated voltage range from DC250V to DC1000V and a rated current from 10A to 1250A. These MCCBs provide overload long delay protection and short-circuit instantaneous protection, making them ideal for distributing electrical energy and safeguarding lines and power equipment against overloads, short circuits, and other faults. The circuit breaker's casing is made of durable plastic material.


CNKA molded case circuit breaker dc mccb Parameter (Specification)


TECHNICAL DATA

Type


YTTM1-125/PV2

YTTM1-250/PV2

YTTM1-400

YTTM1-630

Pole


2P




Max Rated Current


125A

250A

400A

630A

Electrical Characteristics






Rated Working Voltage

Ue

500V DC




Rated Current

In(A)

63A,80A,100A,125A

125A,160A,200A,250A

315A

500A

Rated Insulated Voltage

Ui

550VDC


350A

630A

Rated Impulsed Voltage

Uimp

8KV


400A


1Min Power Frequency WithstandVoltage


3.8KV




Ultimate Breaking Capacity

Icu

15kA

20kA

25kA

35kA

RunBreaking Capacity

Ics

15kA

20kA

25kA

35kA

Protection


Thermal Magnetic Type




Tripping Type






Control And Indication


Optional




Control Manual

Direct(RHD)

Optiona

164.5×79.5×118mm



Extended(ERH)

Optional




Mode MOD


Optional




Shunt Release(SHT)


Optional




Auxiliary Release


Yes




Terminal End Cover


Yes




Interphase Barriers






Service Life/Cycle Operation






Mechanical


10000




Electrical


2000




Size(L×W×H)


150.5×64.5×119mm




Ingress Protection


All Sides IP40,Connection Terminal IP20




Installation Environment






Comply With


IEC60947-2/GB14048.2




Storage Temperature


-40℃~+85℃






CNKA molded case circuit breaker dc mccb Feature


1.  The operating mechanism features quick closing and quick breaking functions.

2.  In the contact arc extinguishing system, the dynamic and static contacts utilize the principle of parallel conductors. The static contacts are H-shaped and designed to repel, enabling rapid breaking under high current. Components made from high arc-resistant materials are installed around the dynamic and static contacts to facilitate rapid arc extinguishing.

3.  The structure is compact and the volume is small.

4.  Various models, including thermal magnetic, leakage current, DC, and intelligent types, share unified overall dimensions.

5.  Accessories can be independently installed, allowing users to easily open the accessory cover to install or replace them.

6.  Mechanical and electrical interlocking can be installed between two circuit breakers.

7.  The operation is safe and reliable with zero or short flashover.

8.  Easy to use, allowing for on-site installation by users.

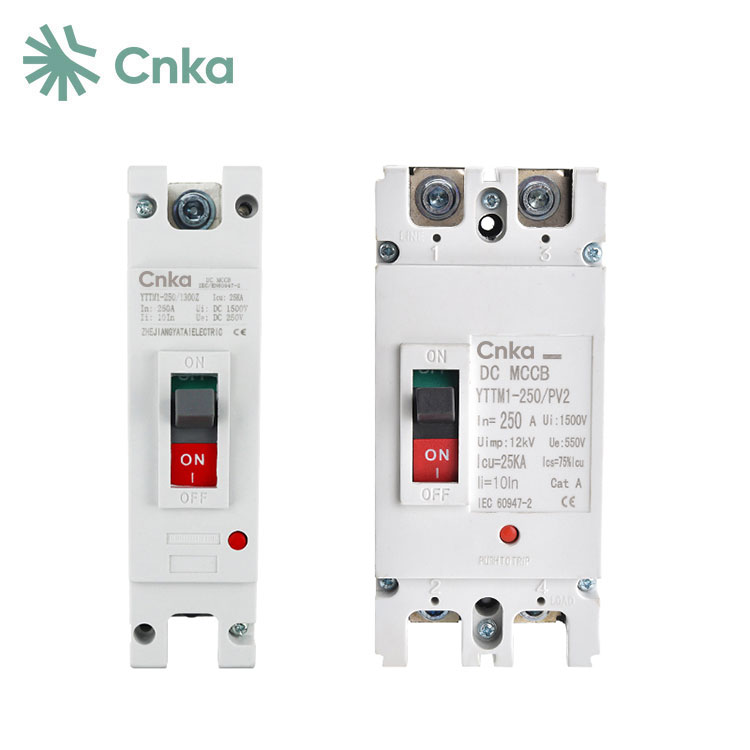

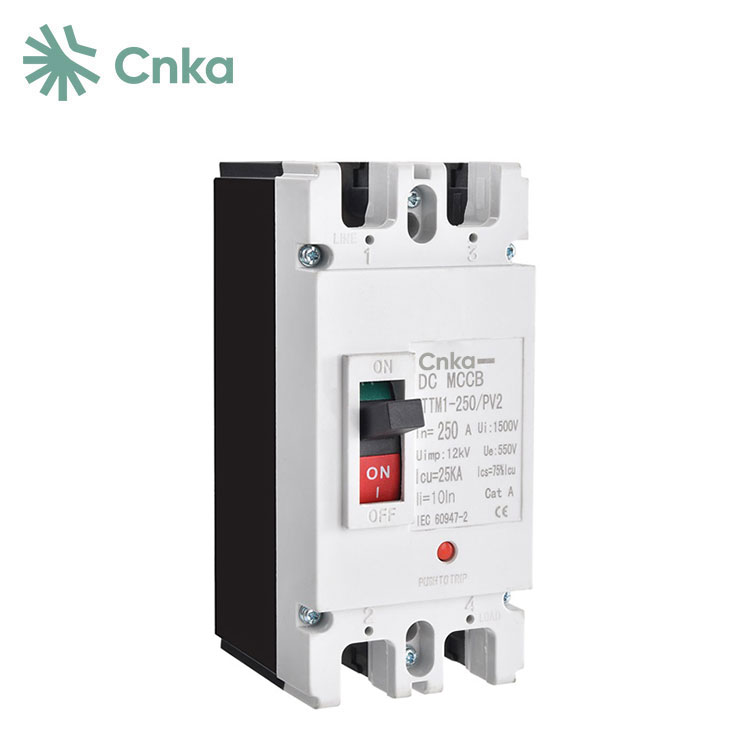

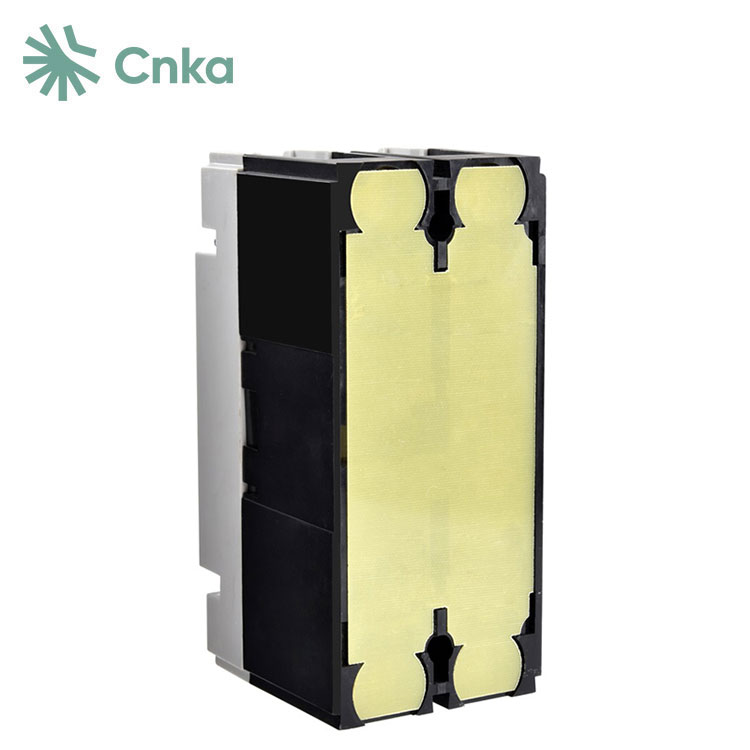

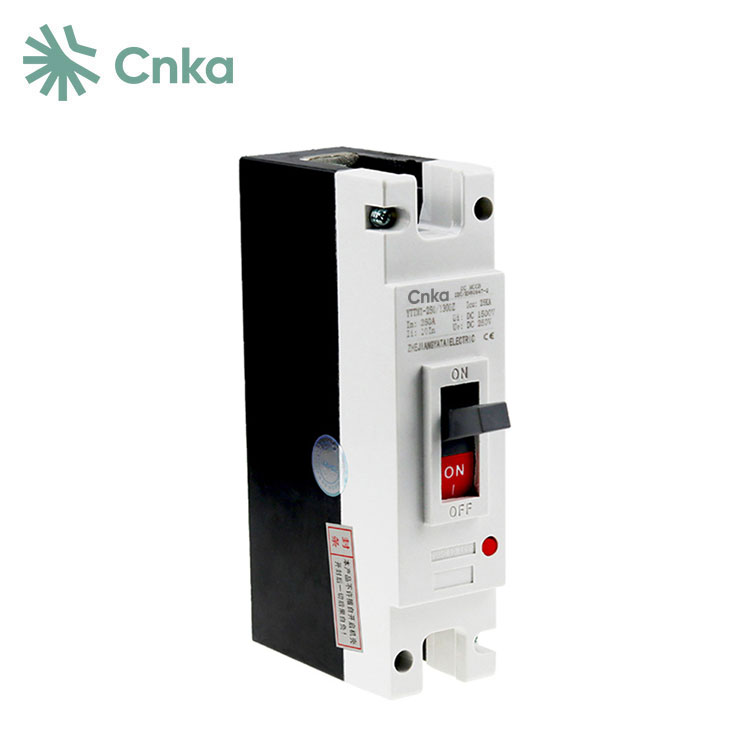

CNKA molded case circuit breaker dc mccb Details



CNKA molded case circuit breaker dc mccb Dimensions and wiring



CNKA molded case circuit breaker dc mccb Application


Molded case DC circuit breakers are ideal for DC power grid circuits with rated voltages from DC250V to DC1000V and rated currents from 10A to 1250A. These circuit breakers feature an operating mechanism that quickly achieves closing and breaking functions. Their compact structure and small volume make them highly convenient to use.
