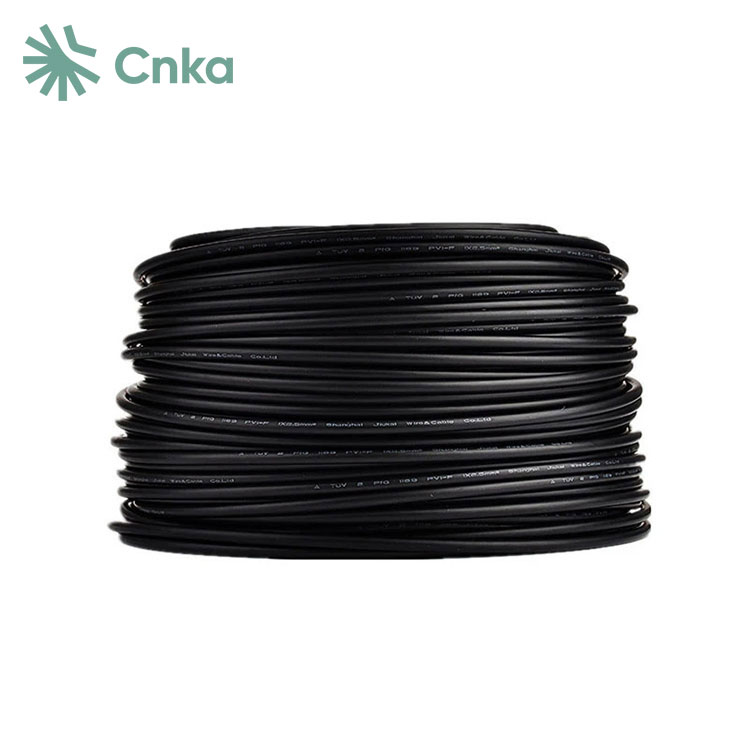

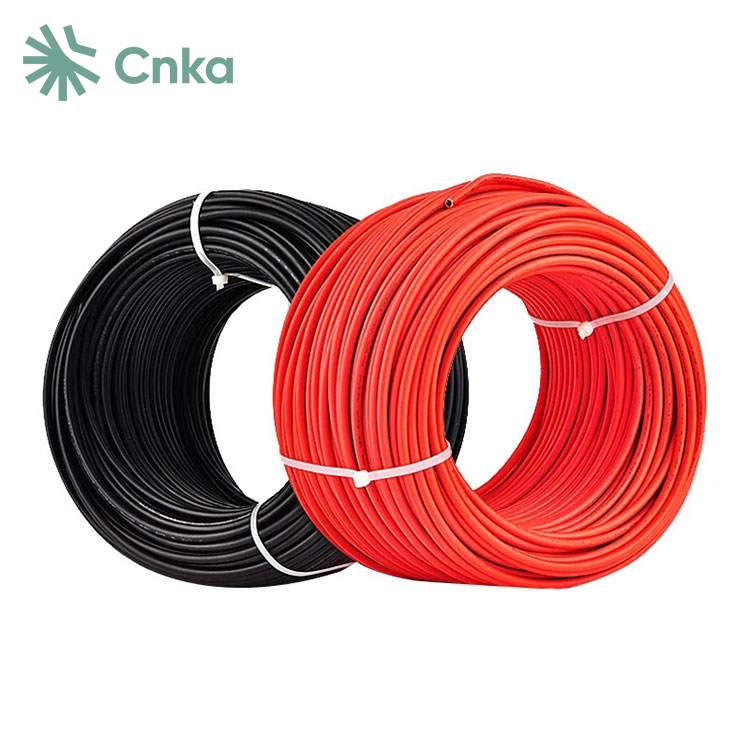

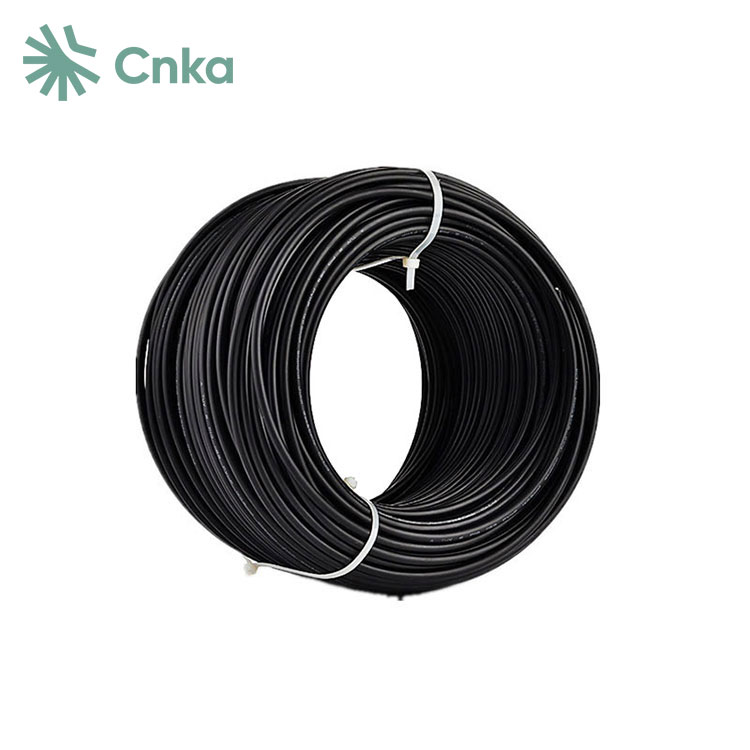

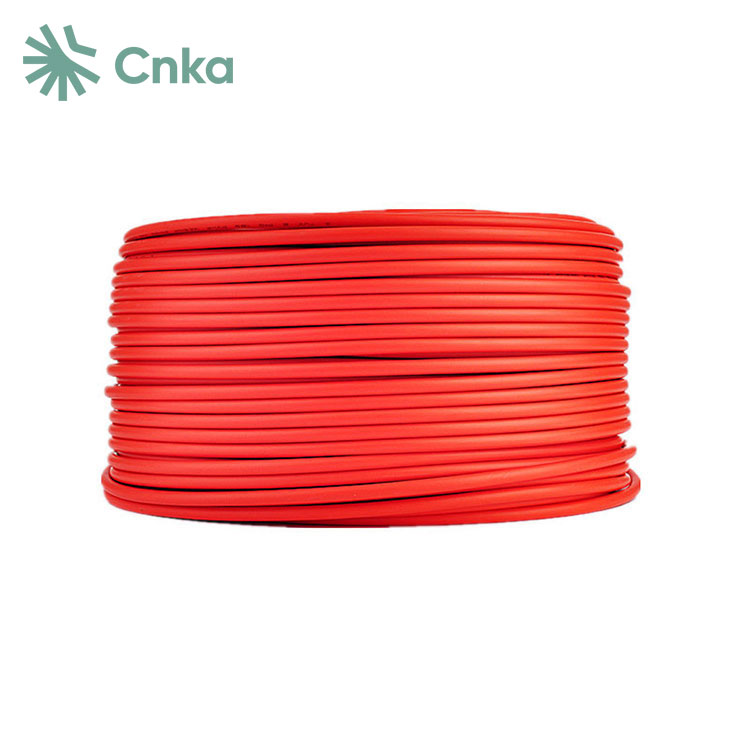

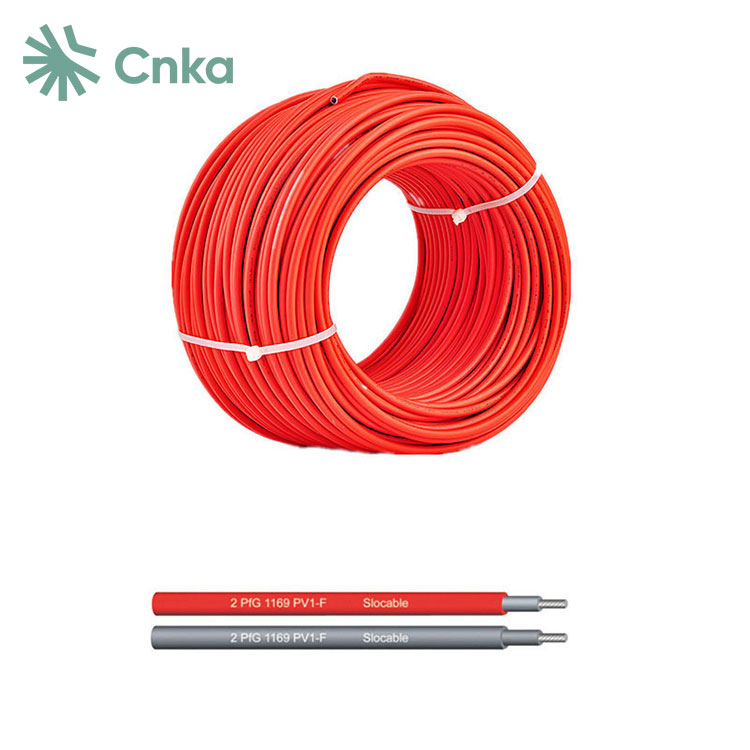

CNKA's discounted price list for 4mm PV solar cables caters to specialized cables used to connect solar panels and inverters, commonly known as photovoltaic cables. These cables are designed for solar systems operating at voltages ranging from 600 to 1000 volts AC and 1500 volts DC. They are particularly suited for harsh environmental conditions including high temperatures and exposure to ultraviolet radiation.
Solar cables differ from conventional cables due to their unique characteristics, including high and low temperature resistance, oil resistance, resistance to acids, alkalis, and salts, UV resistance, flame retardancy, and environmental friendliness. These features ensure reliable performance and durability in solar energy applications.
|
Type |
Cross Section |
Strand design |
Conductor diameter |
Conductor resistance |
Outer diameter Ax B |
Rated voltage |
Rated current |
|
mm² |
No.xφ(mm) |
mm |
Ω/km |
mm |
VAC/DC |
A |
|
|
PV-1x2.5mm2 |
2.5 |
50 xφ0.25 |
2.0 |
8.06 |
5.3 |
1000/1800 |
30 |
|
PV-1x4.0mm2 |
4.0 |
56 xφ0.3 |
2.6 |
4.97 |
6.4 |
1000/1800 |
50 |
|
PV-1x6.0mm2 |
6.0 |
84 xφ0.3 |
3.3 |
3.52 |
7.2 |
1000/1800 |
70 |
|
Insulation Material |
XLPE |
|
Double Insulated |
|
|
Halogen-free |
|
|
High resistance against oils,greases,oxygen |
|
|
and ozone |
|
|
Microbe-resistant |
|
|
UV Resistant |
|
|
High Wear And Abrasion Resistance |
|
|
Flam Test According To |
DIN EN 50265-2-1 UL1571(VW-1) |
|
Smallest Permissible Bending Radius |
5XD |
|
Temperature Range |
-40℃~+90℃ |
|
Colours |
Black/red |
1.Enhanced with dual-wall insulation and electron beam cross-linking technology to maximize performance.
2.Designed to withstand harsh environmental elements such as UV radiation, water, ozone, and saline fluids, demonstrating superior resistance.
3.Durable construction with strong resistance to wear, minimizing susceptibility to abrasion and scratches.
4.Utilizes halogen-free flame retardant and low-toxicity materials for improved environmental safety.
5.Features excellent flexibility and peel strength characteristics.
6.Provides high current carrying capacity for reliable and sustained transmission of diverse electrical energies.
Q: What is a PV cable?
A: Photovoltaic cable, commonly known as PV wire, is a single conductor wire used to connect solar panels or PV systems in photovoltaic electric energy systems. PV systems harness sunlight to generate electricity through energy conversion.
Q: What are the different types of PV cables?
A: Typically, there are three main types of cables used in photovoltaic (PV) systems: DC solar cables, Solar DC main cables, and Solar AC connection cables.
Q: What are the uses of DC circuit breakers?
A: DC circuit breakers are used to protect specific loads powered by DC, or to safeguard primary circuits such as inverters, solar PV arrays, or battery banks.
