Solar Dc Isolator Switch

For our solar DC isolator switch, we prioritize meeting the unique requirements of each customer. Our product has garnered high praise and a strong reputation in numerous countries due to its distinctive design, reliable performance, and competitive pricing. For further details about our solar DC isolator switch, please don't hesitate to reach out to us. We're here to assist you.

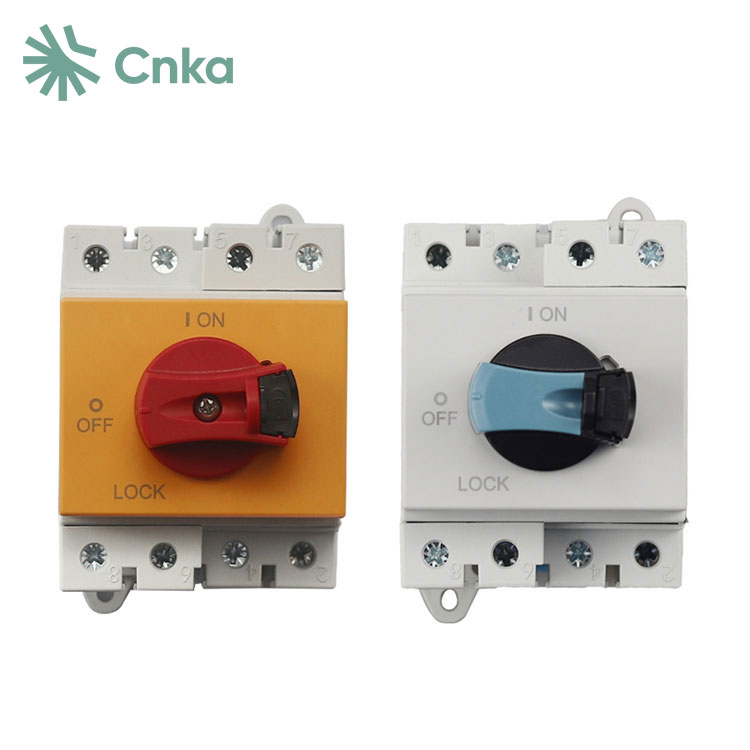

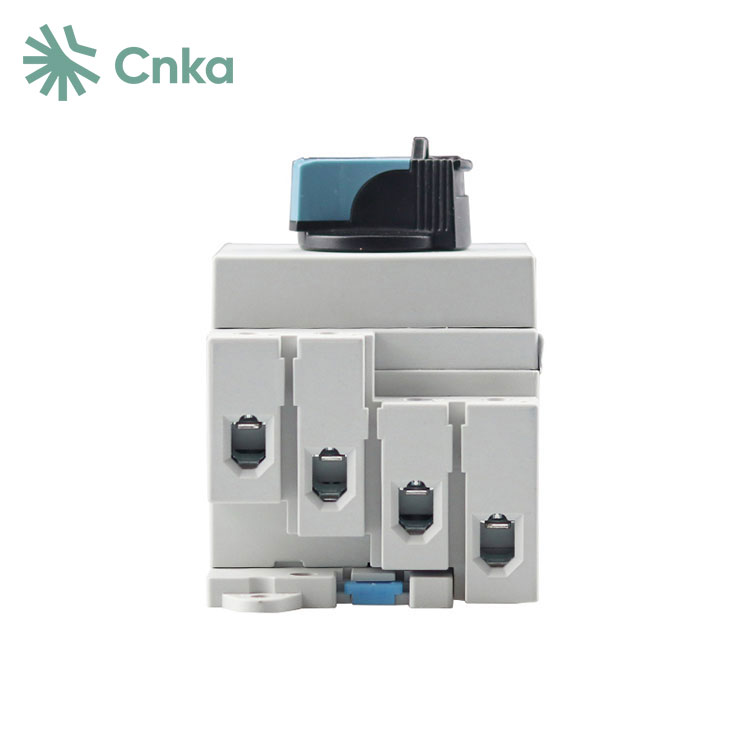

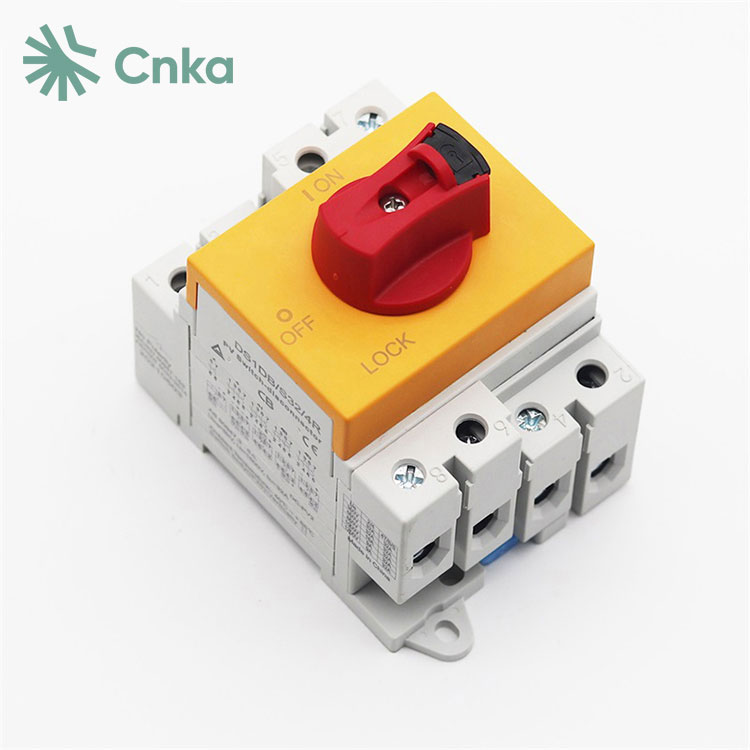

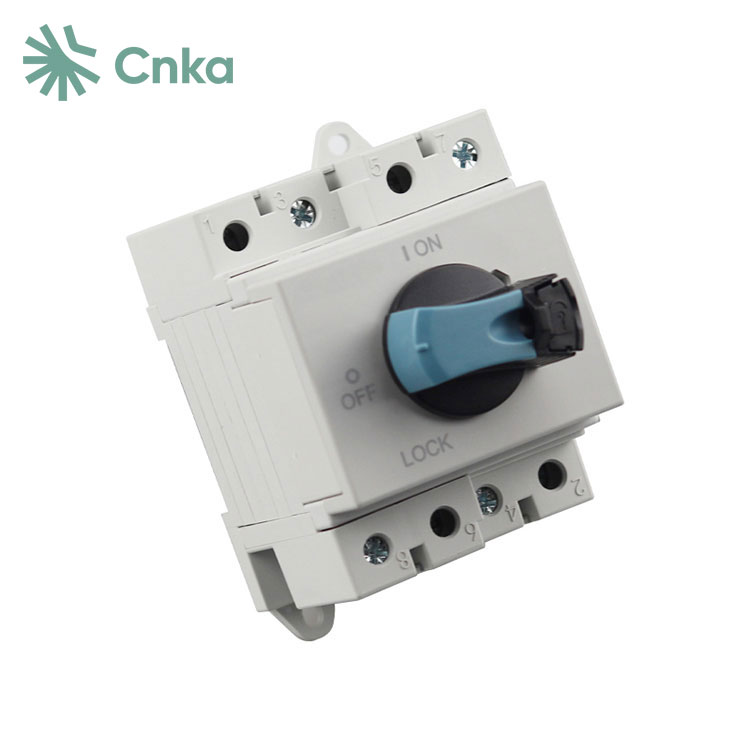

CNKA solar dc isolator switch Introduction


The Chinese-made CNKA brand solar DC isolating switch can effectively switch DC current up to 1000V. These switches have a powerful design and are capable of handling rated currents, making them ideal for use in photovoltaic systems. According to IEC standards, all photovoltaic installations require DC switches to safely disconnect the connection between the DC-AC inverter and the solar panel as needed.


CNKA solar dc isolator switch Parameter (Specification)


Product Model DS1DB-S32
Pole 4P
Rated Current (A) 32A
Rated Voltage (Vdc) 1000
Color Yellow
Working Temperature -40℃~+70℃
Distance of contacts (per pole) 8mm
Pollution degree 2
Mechanical Life Not less than 10000 times


CNKA solar dc isolator switch Feature


1.This product is suitable for installation in distribution boxes.

2.It offers flexible installation options with both surface and panel mounting capabilities.

3.The protection level of the switch is IP20.

4.It features a lockable mechanism in the closed position.

5.The switch ensures an extremely short power shut-off time of approximately 3 milliseconds (ms).


CNKA solar dc isolator switch Details


1.We include a complimentary pair of bus-bars and mounting screws with each unit.

2.Constructed from flame-retardant PC material, ensuring insulation and flame retardance.

3.Features a 90°rotating handle tested for durability and strength through 10,000 cycles.

4.Utilizes silver alloy contacts known for their low resistivity, excellent conductivity, high temperature resistance, and resistance to oxidation.



CNKA solar dc isolator switch Dimensions and wiring
